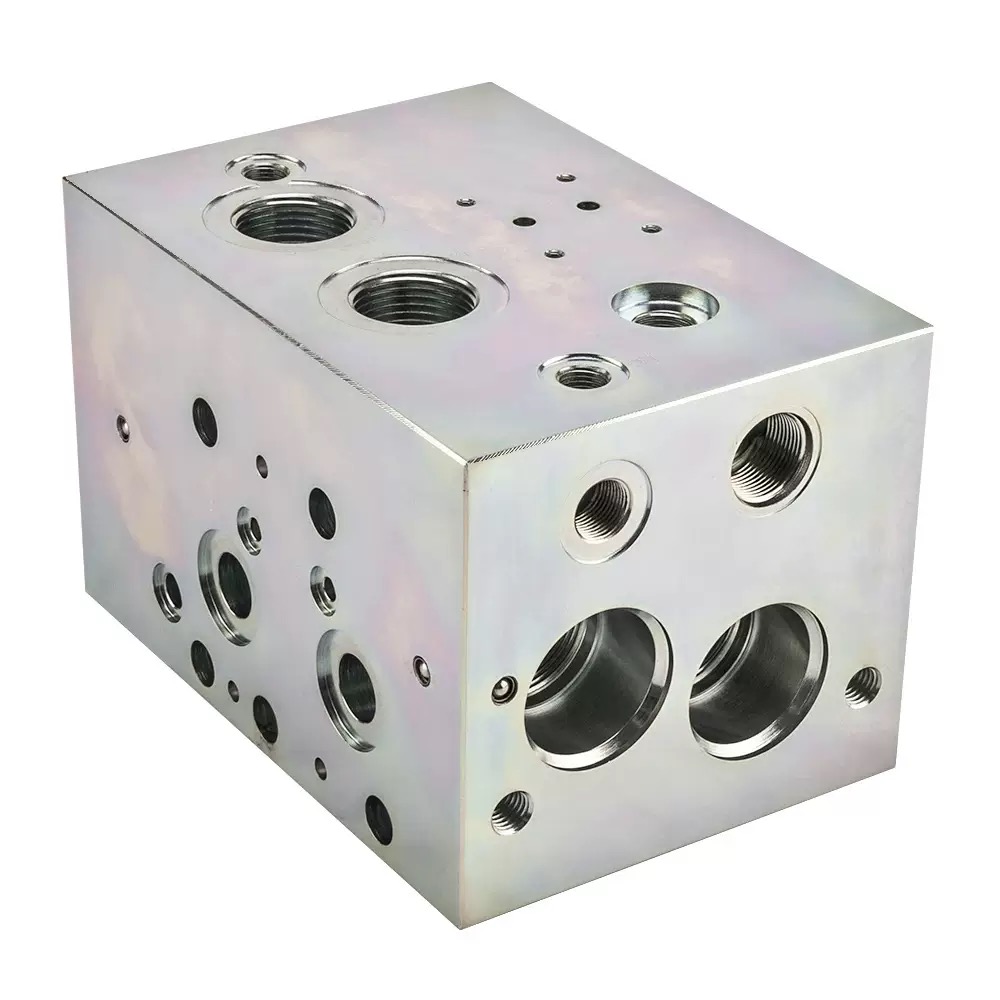

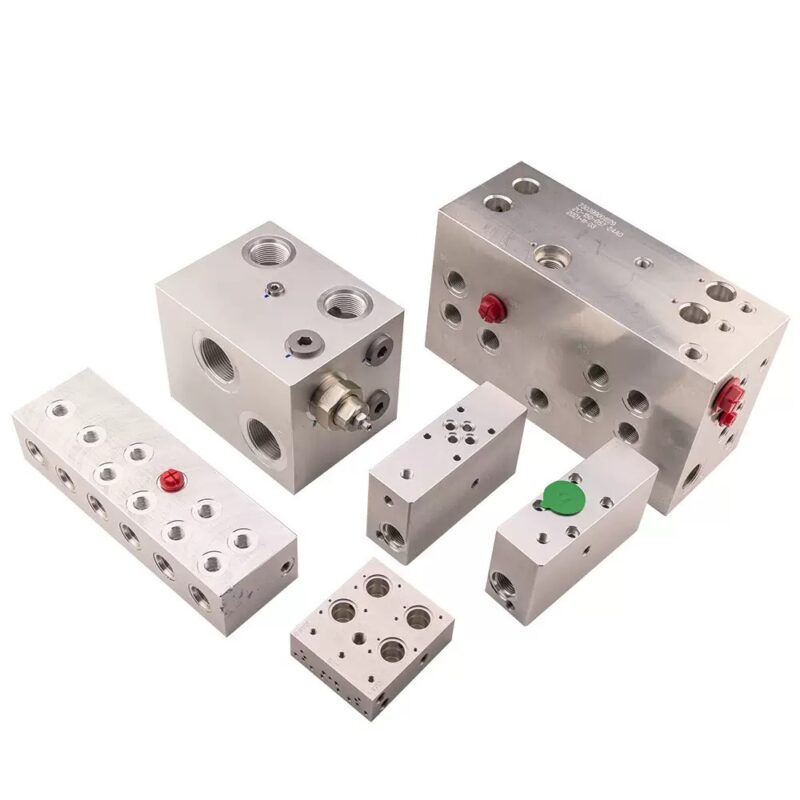

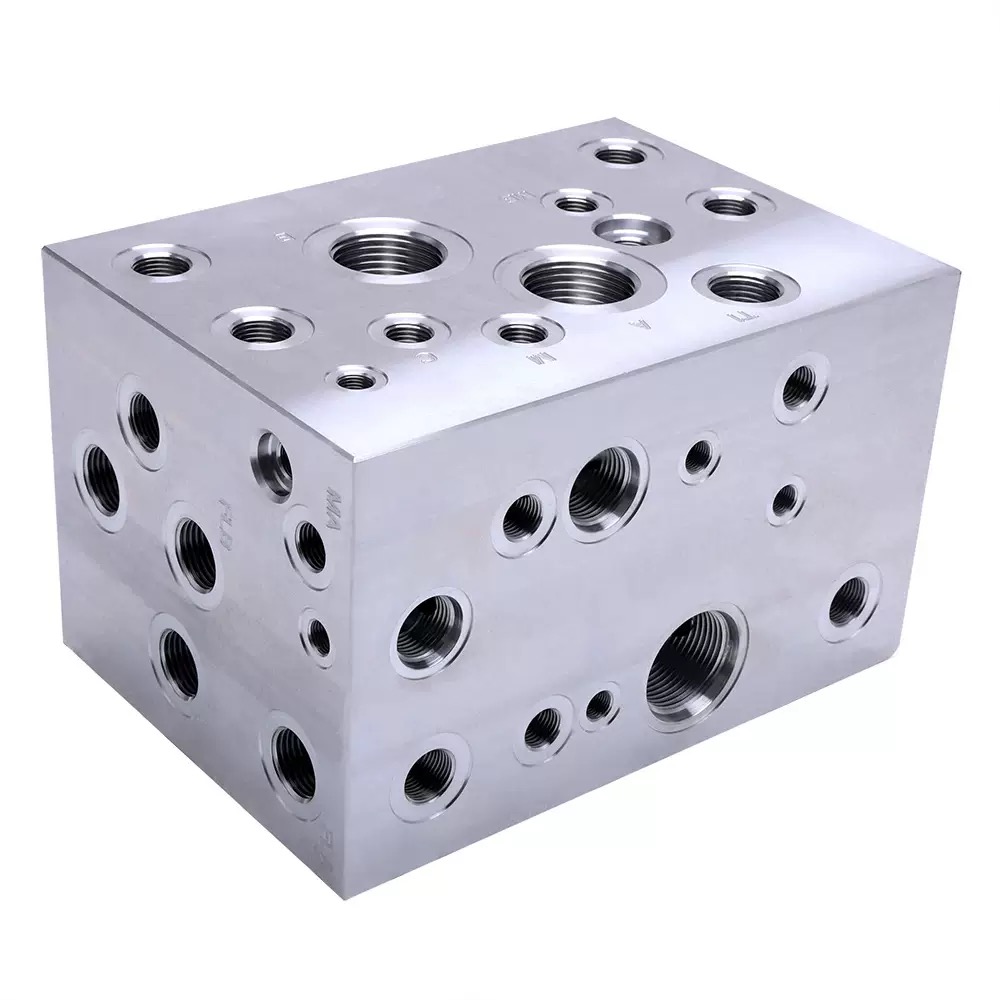

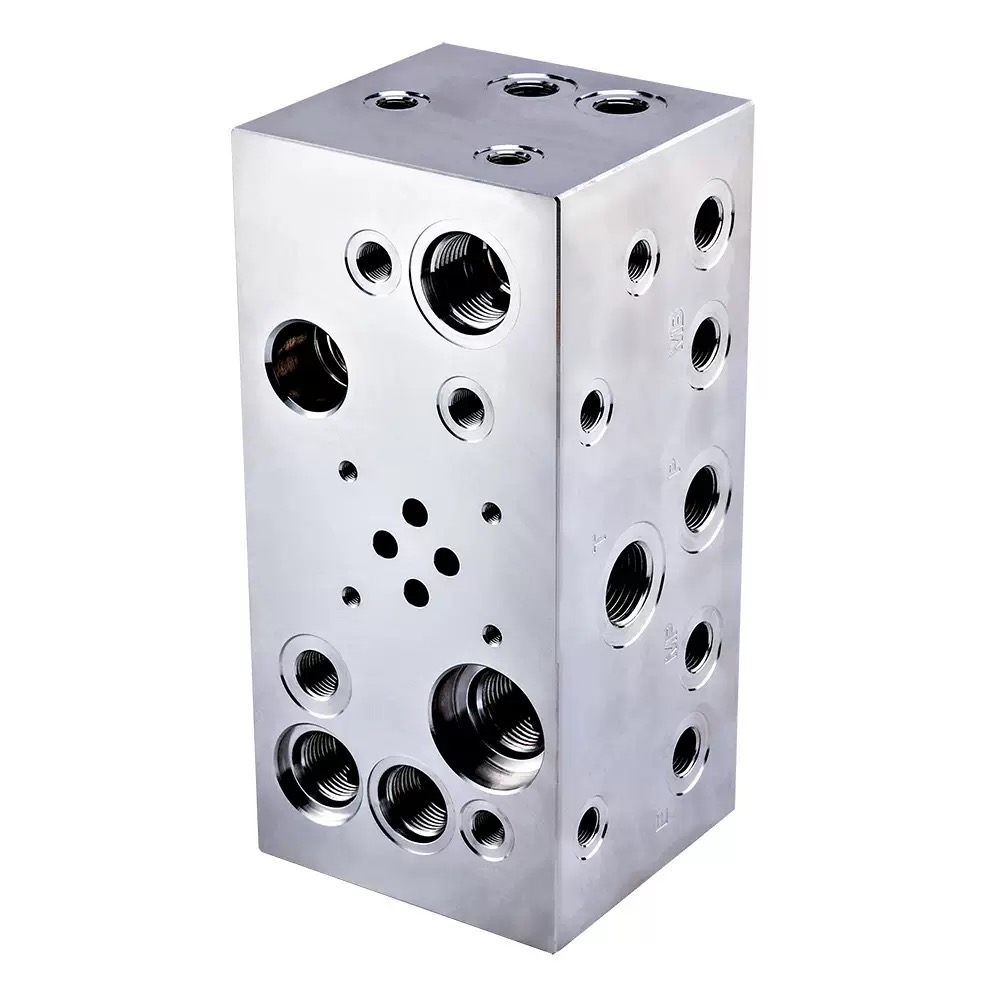

Hydraulic Manifold Block

描述

The hydraulic manifold block is a core component in hydraulic systems, used to integrate, distribute, and control fluid flow between pumps, actuators, and other components. It enables centralized valve installation by routing multiple hydraulic circuits within a compact metal block. This design reduces piping complexity, enhances efficiency, and minimizes leakage. Our manifold blocks are manufactured from high-strength carbon steel or aluminum alloy, and offer customization options for port layout, thread types, and flow configurations.

Key features:

• Multi-channel integration for centralized fluid routing

• High-quality materials: aluminum alloy or carbon steel for durability and corrosion resistance

• CNC precision machining ensures accurate fit, reduced pressure drop, and zero leakage

• Compatible with cartridge valves, modular valves, or solenoid valves

• Customizable porting, mounting holes, and configurations

Advantages:

• Simplifies hydraulic layout, reducing piping and saving installation space

• Improves system response time and control precision

• Minimizes potential leakage points, enhancing safety and reliability

• Facilitates maintenance with modular construction

• Reduces total system cost while improving integration and aesthetics

Application Scenarios:

• Construction machinery – for centralized hydraulic control

• Injection molding machines – to manage mold movements and actions

• Industrial automation – for robotic arms and multi-axis controls

• Aerospace and defense – for high-precision hydraulic control

• Machine tools – integrated into clamping systems or hydraulic workbenches

Frequently Asked Questions (FAQ)

Q1: Can the manifold be customized to our system design?
A1: Yes, we provide complete customization services, including port positioning, thread specifications, and circuit layout.

Q2: Which material should I choose?
A2: Aluminum is ideal for medium-pressure systems and lightweight needs. Carbon steel is recommended for high-pressure, heavy-duty applications.

Q3: What types of valves can be mounted?
A3: Our manifolds support cartridge valves, sandwich valves, modular valves, and solenoid valves.

Q4: Do you offer technical drawings and design assistance?
A4: Yes, we provide 3D models, layout suggestions, and engineering support for optimal system integration.
