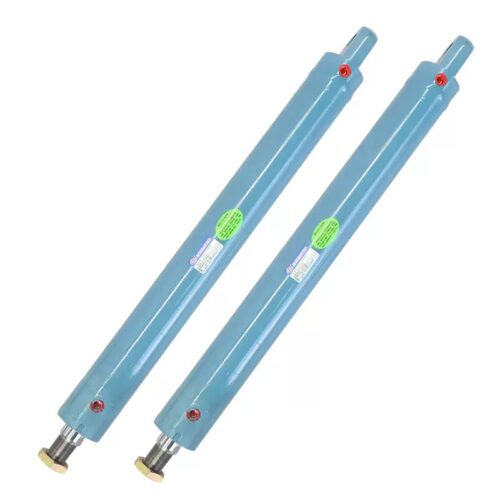

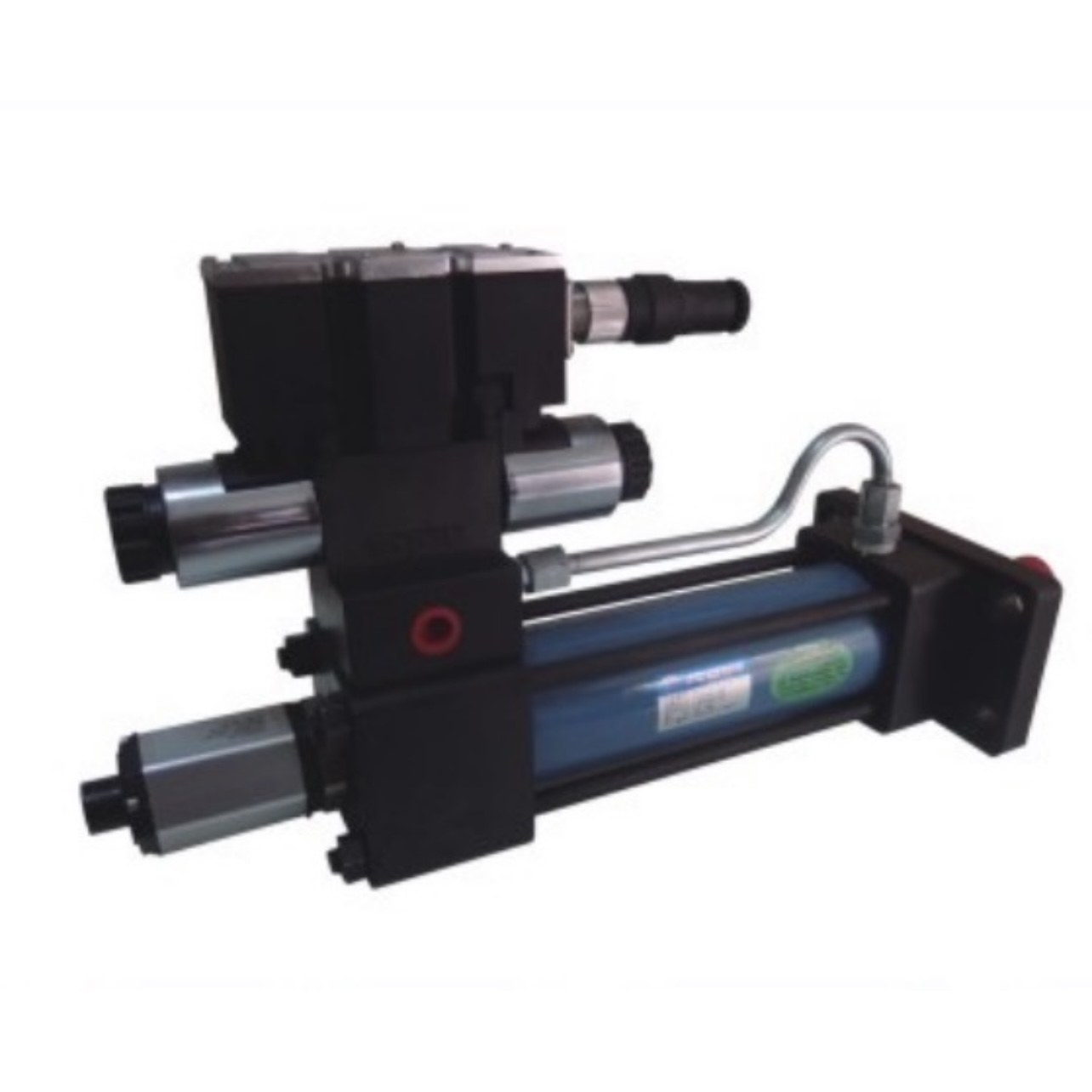

HG Series Oil Cylinder with Displacement Sensor
Discover the HG Oil Cylinder with integrated displacement sensor – ideal for smart manufacturing, precision control, and automation. High-strength, real-time feedback.
描述
The HG Series Cylinder with Displacement Sensor is a high-precision hydraulic actuator specifically designed for smart automation applications that require accurate position control. By integrating a displacement sensor into the cylinder body, this product enables real-time monitoring of piston position, enhancing the overall intelligence and responsiveness of the hydraulic system.
Features
-
Real-Time Position Feedback: Built-in displacement sensor offers real-time monitoring of piston travel for enhanced control.
-
Rugged Construction: Manufactured from high-strength alloy steel, ensuring durability under high-pressure and high-load conditions.
-
Advanced Sealing: Multi-seal structure prevents oil leakage and ensures long-term reliable operation.
-
Multiple Mounting Options: Available with front flange, rear flange, clevis, or trunnion mounting styles.
-
Versatile Signal Output: Supports analog (0–10V, 4–20mA) and digital (CANbus, RS485) signal formats.
Advantages
The HG displacement sensor hydraulic cylinder is a core component in smart hydraulic systems, enabling closed-loop control and position feedback. It improves operational precision, reduces machine downtime, and enhances system automation. The compact design and maintenance-friendly structure help reduce total cost of ownership.
Application Scenarios
-
Robotic arm control in automated production lines
-
Injection molding machines and die casting machines with position feedback
-
Metal forming and forging machinery for die positioning
-
Industrial testing and quality inspection platforms
-
Aerospace and defense equipment requiring micron-level accuracy
Frequently Asked Questions
Q1: What types of displacement sensors are available?
A1: Magnetic linear, potentiometric, inductive, and digital sensors with various output options.
Q2: What pressure range can this cylinder handle?
A2: Standard pressure ratings are 16MPa to 25MPa, with customizable high-pressure options available.
Q3: Can the sensor be replaced independently?
A3: Certain models offer modular design for sensor replacement without removing the entire cylinder.
