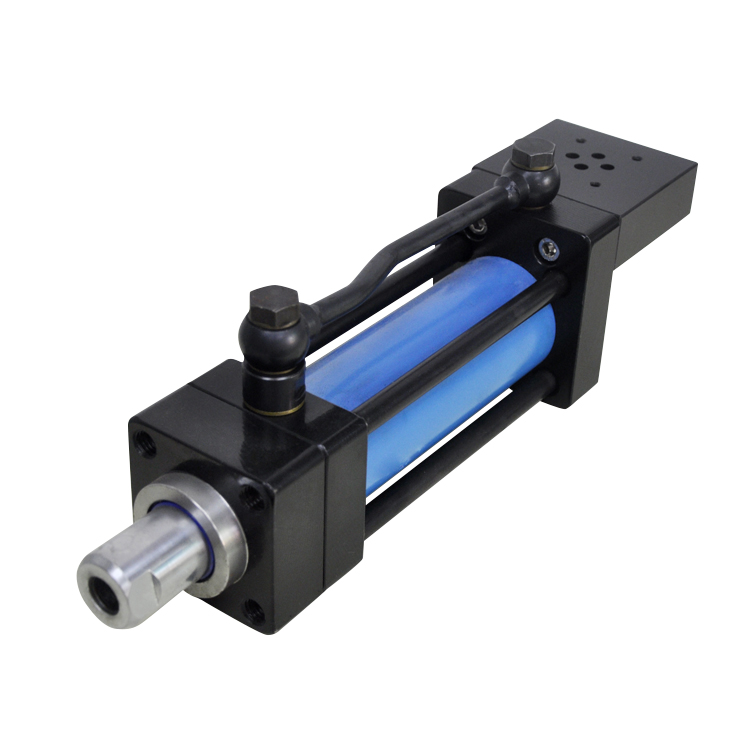

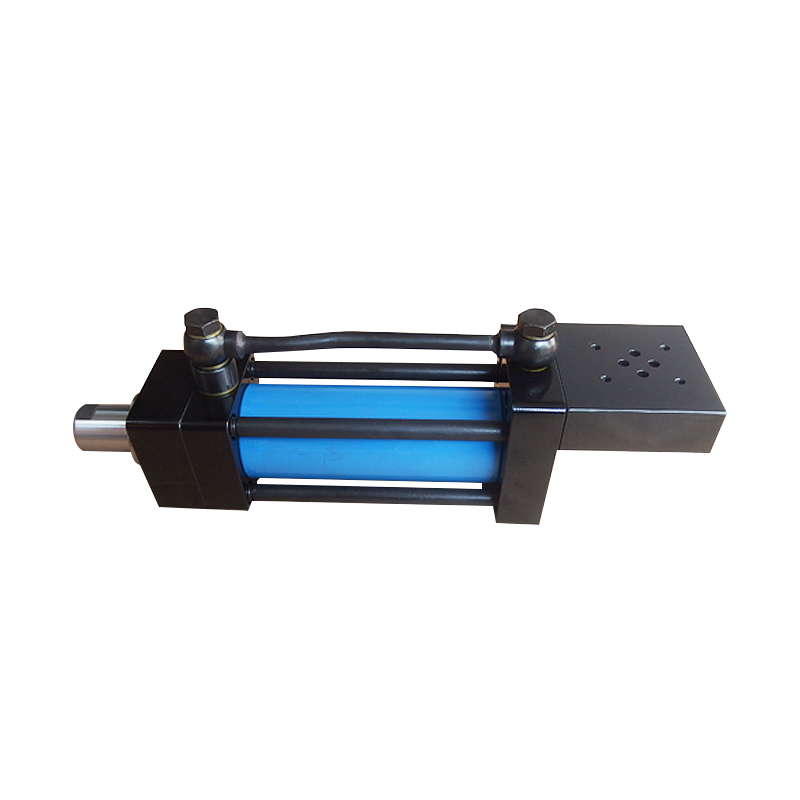

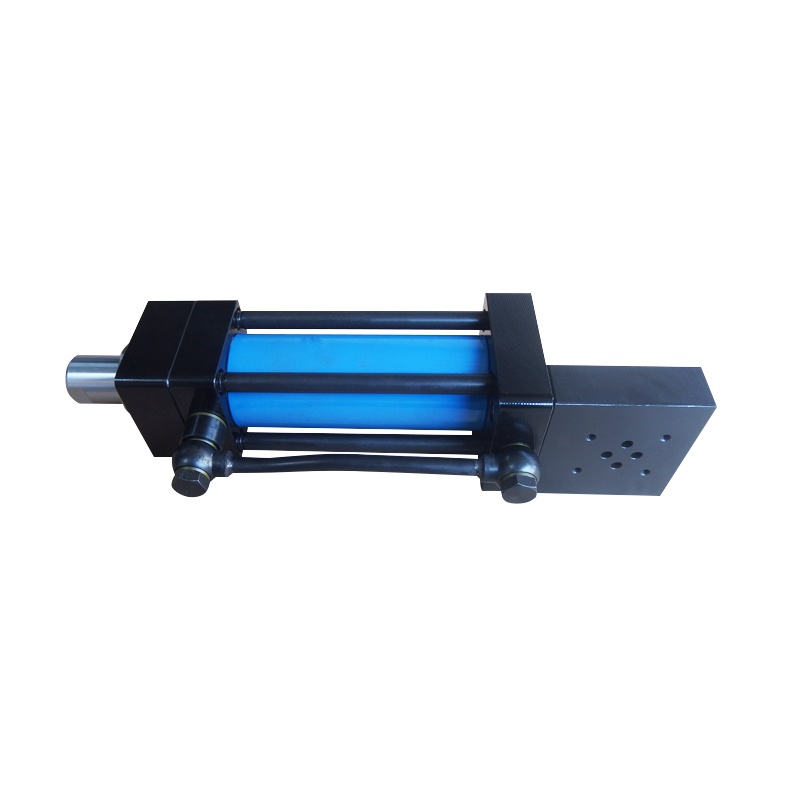

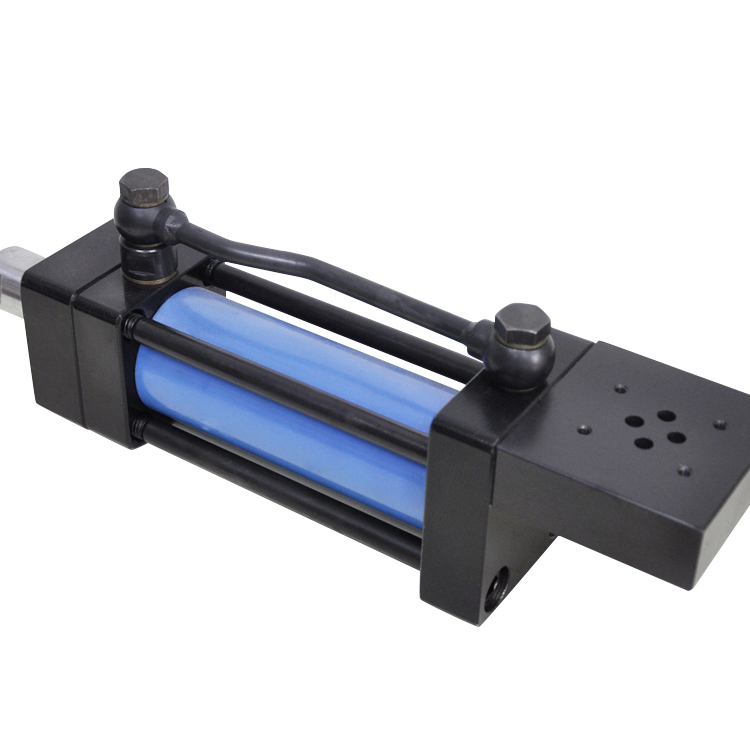

Bottle Capping Machine Hydraulic Cylinder
Bottle Capping Machine Cylinder Type B is made of 45# steel with center hinge mounting. Max working pressure 140MPa. Compact, stable, and suitable for CNC machines, mold machines, and servo equipment.
Description
Bottle Capping Machine Cylinder Type B is made of 45# steel with center hinge mounting. Max working pressure 140MPa. Compact, stable, and suitable for CNC machines, mold machines, and servo equipment. Customization available.
Technical Specifications
Brand: Jinzhuang Hydraulic
Product Name: Bottle Capping Machine Cylinder Type B
Specifications: 50×100, 63×150, 80×200, 100×250
Mounting Type: Center Hinge
Material: 45# Steel
Max Working Pressure: 140MPa
Cylinder Height: 400mm
Oil Volume: 0.46L
Weight: 9800g
Product Advantages
Center hinge design for flexible installation
- High-pressure design for precision pressing
- Excellent sealing performance
- Smooth and accurate positioning
- Compact structure saves space
- Long service life with low maintenance cost
Applications
The Bottle Capping Machine Hydraulic Cylinder Type B is widely used in:
- Mold machines
- Servo machines
- Automated production equipment
- Packaging machinery
- Bottle capping equipment
- Precision hydraulic systems
Why Choose Our Product?
- Designed for bottle capping and precision machinery
- Center hinge mounting for flexible movement
- Made of high-strength 45# steel
- Stable output with up to 140MPa working pressure
- Compact structure saves installation space
- Customization available for different machines
FAQ
1. Is this cylinder only used for bottle capping machines?
This cylinder is mainly designed for bottle capping machines but can also be used in similar pressing equipment.
2. Do you support customization?
Yes, bore size, stroke, and mounting type can be customized according to requirements.
3. What is the maximum working pressure?
The maximum working pressure is 140MPa.
4. Can the mounting type be modified?
Yes, the mounting type can be adjusted based on your equipment requirements.

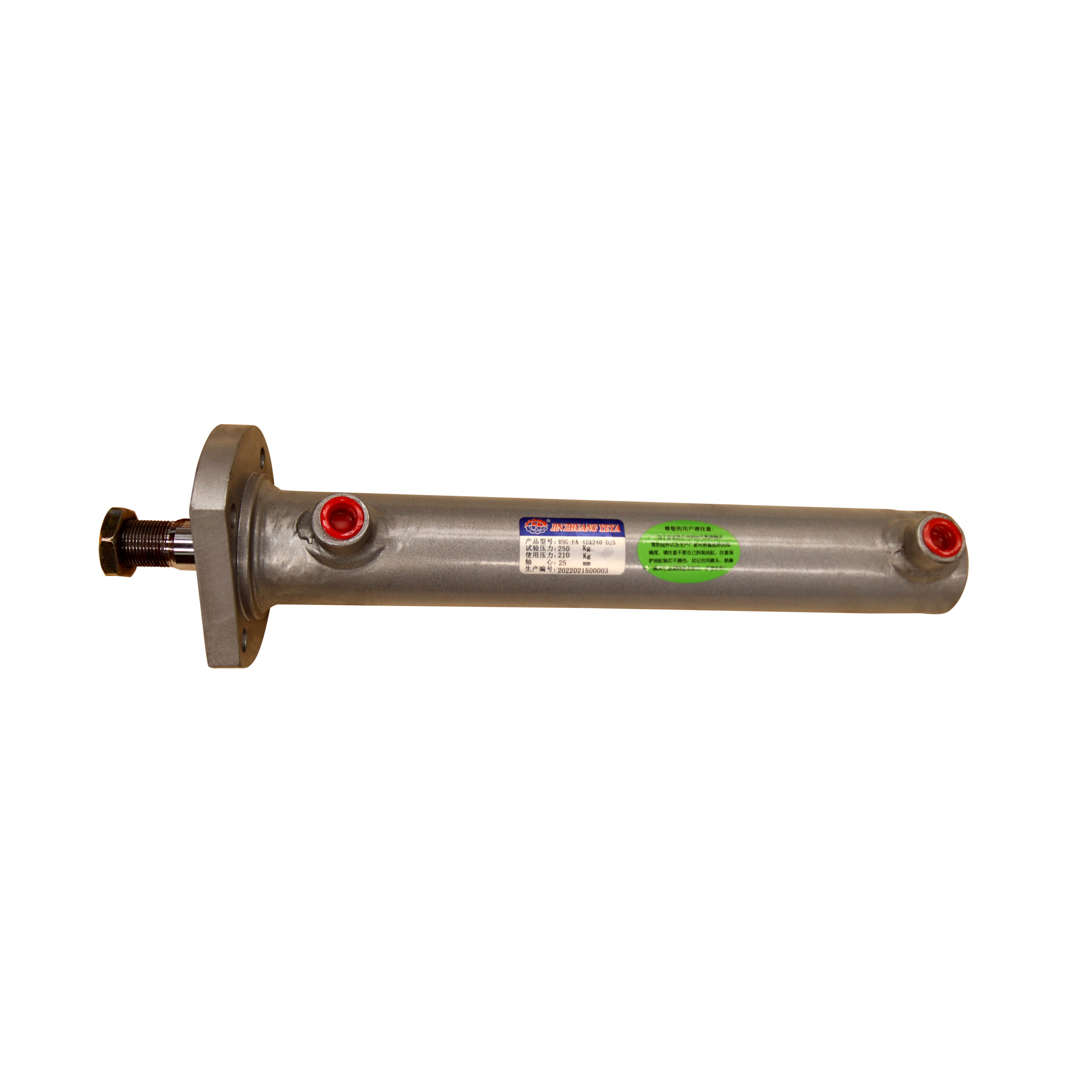

Explore our other best-selling hydraulic products for different needs: HSG Cylinder Welding
